Mimas – Spartan 6 FPGA Development Board

Product Description

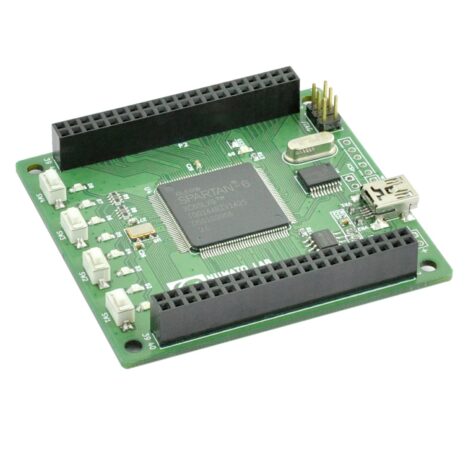

Mimas is an easy to use FPGA Development board featuring Xilinx Spartan-6 FPGA. Mimas is specially designed for experimenting and learning system design with FPGAs. This development board features Xilinx XC6SLX9 TQG144 FPGA with maximum 70 user IOs. The USB 2.0 interface provides fast and easy configuration download to the on-board SPI flash. You don’t need a programmer or special downloader cable to download the bit stream to the board.

Applications

Product Prototype Development Signal Processing Wired and Wireless Communications Educational tool for schools and universities

Board features

FPGA: Spartan-6 XC6SLX9 in TQG144 package Flash memory: 16 Mb SPI flash memory (M25P16) 100MHz CMOS oscillator USB 2.0 interface for On-board flash programming FPGA configuration via JTAG and USB 8 LEDs and four switches for user defined purposes 70 IOs for user defined purposes On-board voltage regulators for single power rail operation

Features & Specifications

ROHS: Yes

Switches: Push Button

Number Of GPIOs (Max): 70

Memory Type: SPI Flash (Configuration)

Number Of Clock Sources: 1

FPGA Device: XC6SLX9

Number Of General Purpose LEDs: 8

Communication: TTL Compatible Input, TTL Compatible Output

Configuration Options: JTAG

Primary Clock Frequency (MHz): 100
