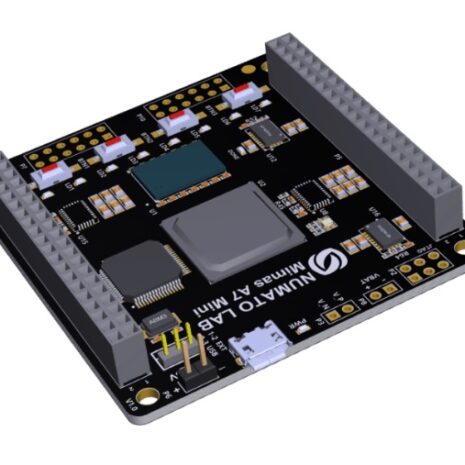

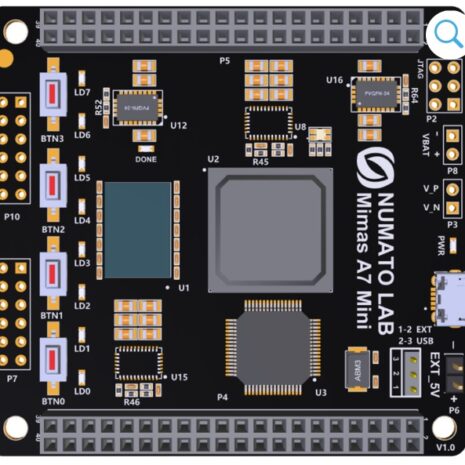

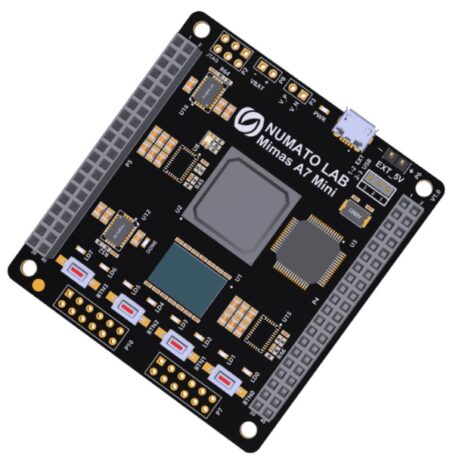

Mimas A7 Mini FPGA Development Board

109.20

Mimas A7 Mini is an easy to use FPGA Development board featuring Artix 7 FPGA (XC7A35T – FTG256C package) with FTDI’s FT2232H Dual-Channel USB device. It is an Artix-7 based replacement and upgrade of Mimas Spartan 6 FPGA Board. It is specially designed for the development and integration of FPGA based accelerated features to other designs. The USB 2.0 host interface based on popular FT2232H offers high bandwidth data transfer and board programming without the need for any external programming adapters.

Out of stock

Category: .

Product Description

Description Mimas A7 Mini is an easy to use FPGA Development board featuring Artix 7 FPGA (XC7A35T – FTG256C package) with FTDI’s FT2232H Dual-Channel USB device. It is an Artix-7 based replacement and upgrade of Mimas Spartan 6 FPGA Board. It is specially designed for the development and integration of FPGA based accelerated features to other designs. The USB 2.0 host interface based on popular FT2232H offers high bandwidth data transfer and board programming without the need for any external programming adapters.

Features

Device: Xilinx Artix 7 FPGA (XC7A35T-1FTG256C)

DDR3: 2Gb DDR3 (MT41J128M16JT-125 or equivalent)

Built-in programming interface. No expensive JTAG adapters needed for programming the board

Onboard 128Mb flash memory for FPGA configuration storage and custom user data storage

High-Speed USB 2.0 interface for On-board flash programming. FT2232H Channel B is dedicated for JTAG Programming. Channel A can be used for custom applications

100MHz CMOS oscillator

8 LEDs, 1 RGB LED and 4 Push Buttons for user-defined purposes

FPGA configuration via JTAG and USB

Maximum IOs for user-defined purposes —FPGA – 70 IOs (35 professionally length matched Differential Pairs) and two 2×6 Expansion Headers

Applications

Product Prototype Development

Accelerated computing integration

Development and testing of custom embedded processors

Communication devices development

Educational tool for Schools and Universities
