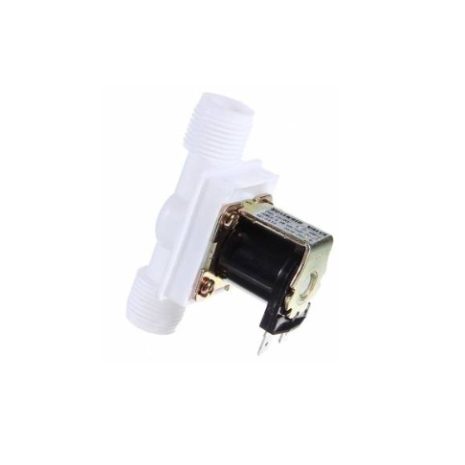

Product Description
Features & Specifications
Current: 250mA
Voltage: 12V DC
Pressure: 0-0.8MPa
Operation Mode: Normally closed
Fluid Temperature: 1-100℃
Maximum Size: 84 x 53 x 41mm
Diameter of Screw: 19mm
Length of Screw: 17mm
Diameter of Connector: 14mm
Valve Type Diaphragm(operated by servo)
Usage Water and low viscosity fluids
The valve is suitable for automation of pouring systems or to prevent water pipe’s freeze.
