Block Coef
License: Hobby, Industrial
Output Y is a multiplied input X by parameter Coef:
Y=X*Coef
Parameters:
- Coef
Block SUB
License: Hobby, Industrial
Output is subtraction of the two input signals, Y = X1 – X2.
Block Integral
License: Hobby, Industrial
The block integrates the value of the block input. The used integrated method is by Rectangles;
Parameters:
- StartingCondition – the value of the block’s output when the diagram starts;
Block Filter
License: Hobby, Industrial
The block is a Low frequency filter over the input signal X.
Parameters:
- Coef – multiply input by this parameter;
- T – Time constant;
- StartingCondition – the value of the block’s output when the diagram starts;

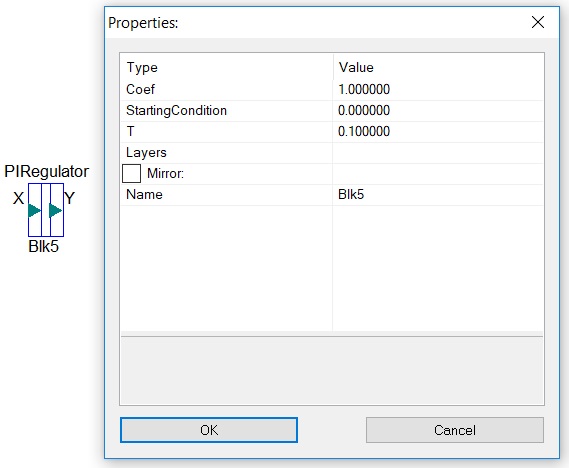

Block PIRegulator
License: Hobby, Industrial
Proportional integral regulator (PI Controller) is a block with multiplier and integral regulator.
Parameters:
- Coef – multiply input by this parameter;
- T – Time constant;
- StartingCondition – the value of the block’s output when the diagram starts;
Block Differential
License: Hobby, Industrial
Classic differential regulator from the signal control theory.
Parameters:
- Td – the time constant of differentiator;
- BoundaryValue – as the output of this regulator can grow very easy (even become infinity), the output by absolute value is limited to the value of this parameter.
