Block Tank
License: Hobby, Industrial

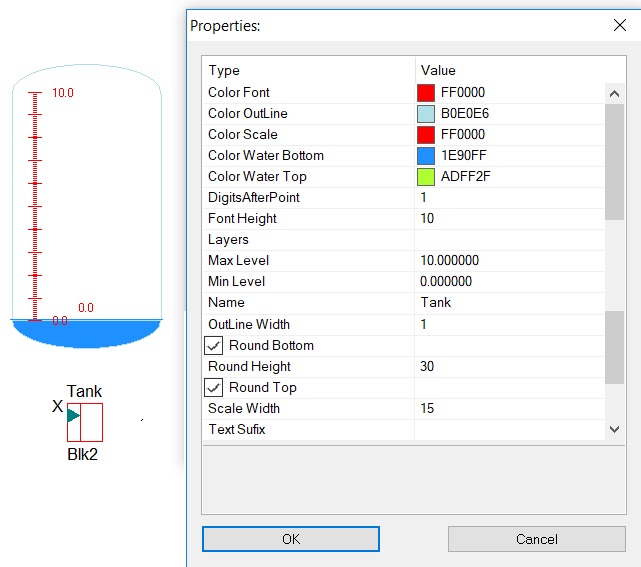

The block can be used for a visualization of a level of liquids. It has one input X, whose level is displayed as a level in the connected control.
By right mouse clicking on the control we can set a large amount of visualization parameters such as colors, font height, min max scale values, whether the top or bottom of the tank is rounded.
Block Pump
License: Industrial

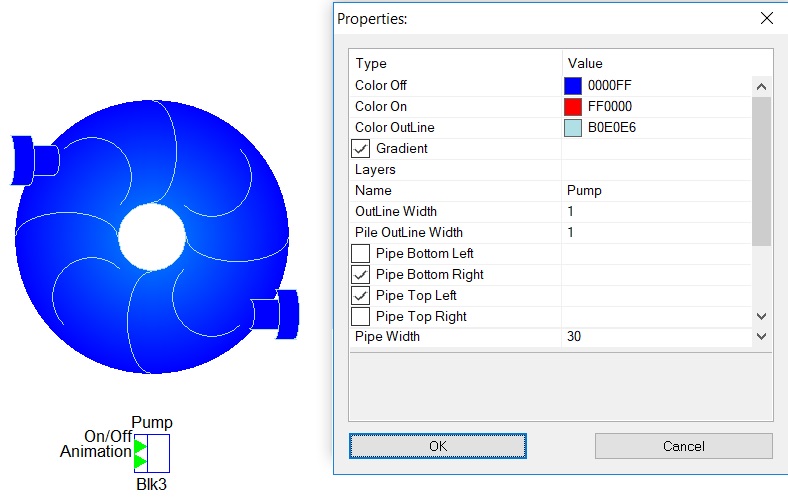

The block is used to visualize the operation of pumps.
Block’s Inputs:
- On/Off – Changes the color of the pump, which simulate that the pump is working.
- Animation – In case the pump is switched ON, the turbine starts to rotate;
By right mouse clicking on the control we can set the visualization parameters such as colors of elements of pump, ON/OFF colors, location of pipe entries and pipe width.
