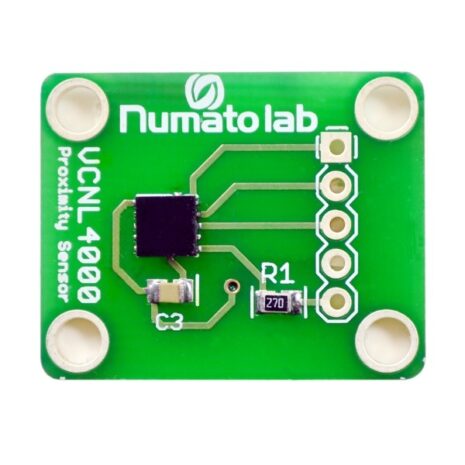

VCNL4000 – Integrated Proximity and Ambient Light Sensor

€9.90

VCNL4000 is a fully integrated Proximity and Ambient Light Sensor with Infrared built in LED with I2C Interface. This is a very compact chip that can be used to ready ambient light and proximity with no other supporting components. I2C interface makes it easy to use this sensor with Arduino and other microcontrollers.

3 in stock

Category: .

Product Description

VCNL4000 is a fully integrated Proximity and Ambient Light Sensor with Infrared built in LED with I2C Interface. This is a very compact chip that can be used to ready ambient light and proximity with no other supporting components. I2C interface makes it easy to use this sensor with Arduino and other microcontrollers.

Features

Integrated module with ambient light sensor,proximity sensor and signal conditioning IC Supply voltage range VDD: 2.5 V to 3.6 V Supply voltage range IR anode: 2.5 V to 5 V Communication via I2C interface Built in infrared LED and photo-pin-diode for proximity function 16 bit effective resolution for proximity detection range ensures excellent cross talk immunity Programmable LED drive current from 10 mA to 200 mA (in 10 mA steps) Excellent ambient light suppression by signal modulation Proximity distance up to 200 mm Built in ambient light photo-pin-diode with close to human eye sensitivity characteristic 16 bit dynamic range for ambient light detection from 0.25 lx to 16 klx 100 Hz and 120 Hz flicker noise rejection
