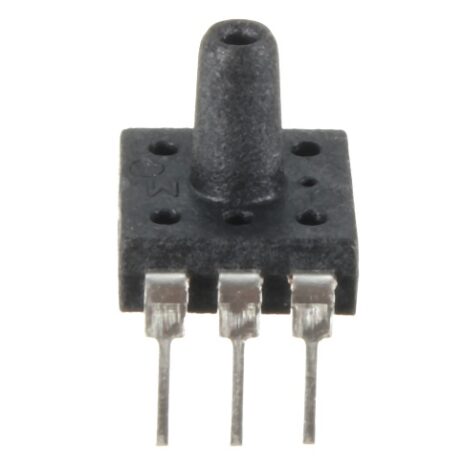

Pressure sensor module MPS20N0040D-D Output: mV signal

€4.50

4 in stock

Product Description

Features & Specifications

Application areas: Automotive: tire pressure, car air pump, MAP sensor, diagnostic equipment, automotive sensors. Industry: Air brake switch, portable pressure gauge, such as digital pressure gauge, environmental monitoring, consumer and sports Health care: patient monitoring and diagnostic equipment, such as blood pressure monitors, medical instrumentation and monitoring

Pressure range of 580 PSIG, 40KPaG

Max pressure capacity of three times the measuring range

Working supply 5 VDC,

Input impedance of 4 – 6 KΩ

Output impedance of 4 – 6 KΩ

Operating temperature -40 – 85 ° C -40 ° F – +185 ° F

Storage Temperature -40 – 125 ° C -40 ° the F – +257 ° F

Accessible media, clean, dry, non-corrosive gases

Bias voltage ± 25 mV

Full-scale output voltage 50 – 100 mV

Bridge Resistance to 4 – 6 KΩ

Linearity ± 0.3% F.S.

Hysteresis ± 0.7% F.S.

Bias Temperature coefficient ± 0.08% of F.S. / °c
